New · IP69-K motor
FZ-CP IP69-K
Centrifugal pump · IP69-K motor
Maximum protection for washdown environments

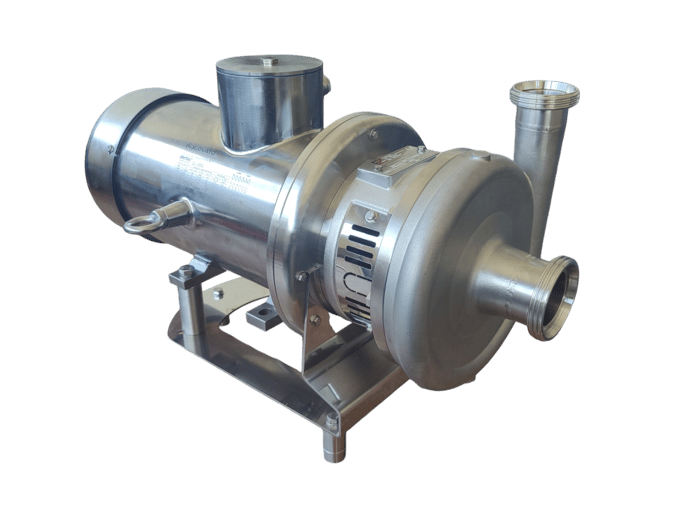

The FZ-CP centrifugal pump with IP69-K motor is engineered for maximum protection against dust and high-pressure, high-temperature water jets — ideal for hygienic environments and demanding washdown applications.
Built in food-grade stainless steel, it supports CIP and SIP cleaning and combines hygiene, reliability and energy efficiency.
Request a quote WhatsAppDiscover the new IP69-K centrifugal pump
What is IP69-K? The highest ingress-protection rating — total protection against dust and against close-range, high-pressure, high-temperature water jets. Perfect for intensive washdown and the most hygienic environments.

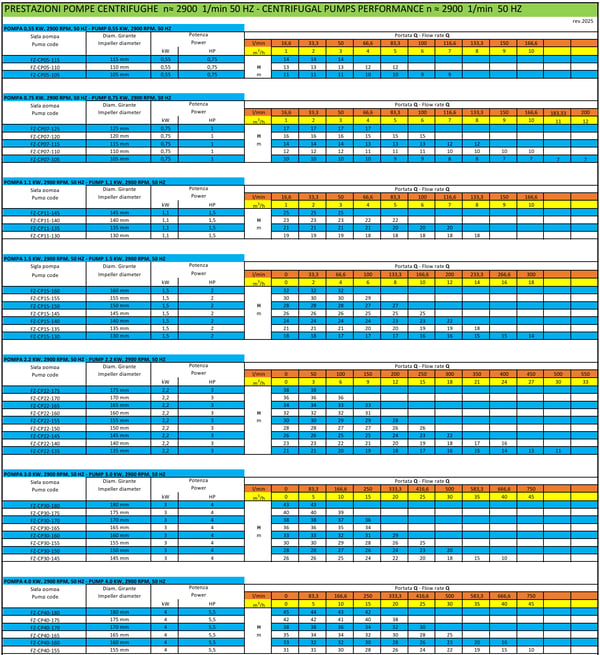

Motors currently available for these centrifugal pumps:
- FZ-CP05 IP69-K Centrifugal pump with an output of 0.55 kW
- FZ-CP07 IP69-K Centrifugal pump with an output of 0.75 kW
- FZ-CP11 IP69-K Centrifugal pump with an output of 1.1 kW
- FZ-CP15 IP69-K Centrifugal pump with an output of 1.5 kW
- FZ-CP22 IP69-K Centrifugal pump with an output of 2.2 kW
- FZ-CP30 IP69-K Centrifugal pump with an output of 3.0 kW
- FZ-CP40 IP69-K Centrifugal pump with an output of 4.0 kW

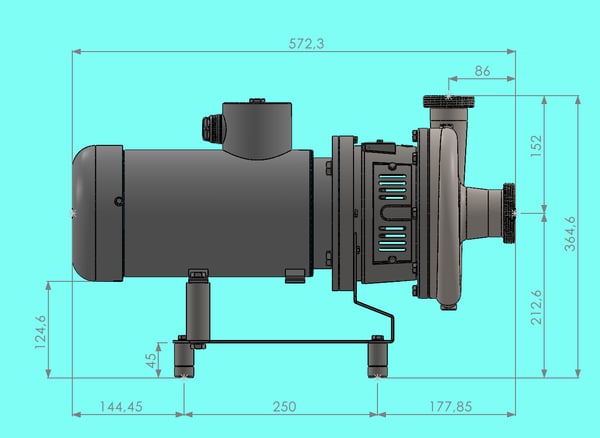

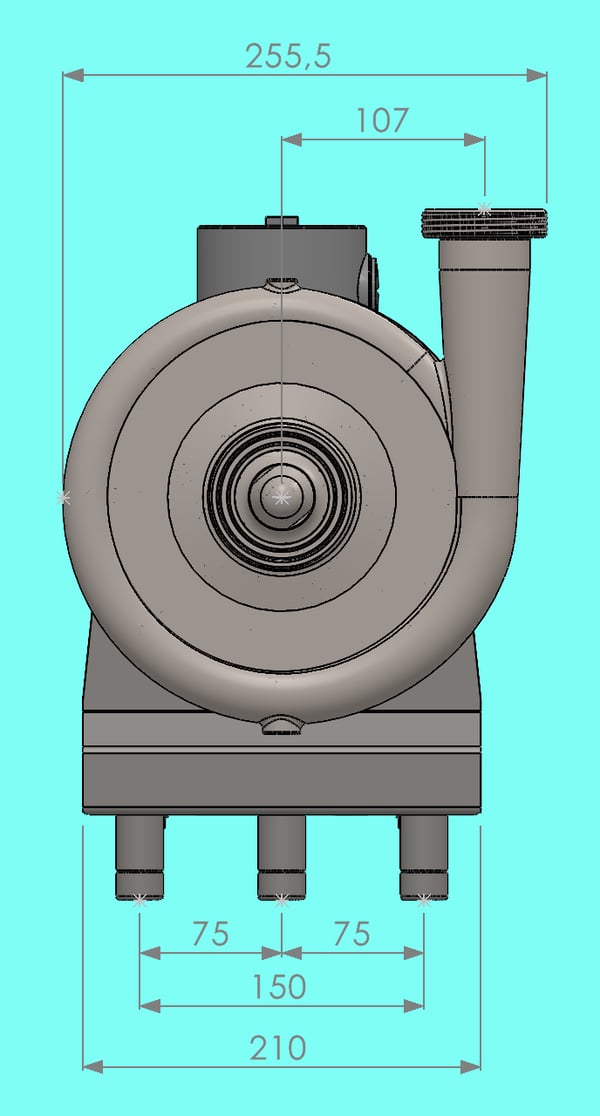

(Indicative example dimensions for an FZ-CP22 IP69-K pump. Dimensions vary depending on the motor fitted.)
The 0.55 kW and 0.75 kW IP69-K pumps do not have a rear motor cooling fan.
Key benefits
High hygieneDesigned to minimise contamination risk with smooth surfaces and materials compliant with the strictest sanitary standards.
Ease of cleaningSupports CIP (Cleaning In Place) and SIP (Sterilization In Place) — no disassembly required.
Safe materialsBuilt in food-grade stainless steel, corrosion-resistant and compatible with food and chemical products.
Low maintenanceSimple, robust design with few moving parts, minimising maintenance costs and needs.
Energy efficiencyOptimised performance to reduce energy consumption without compromising effectiveness.
Quiet operationLow-noise operation, ideal for environments requiring acoustic comfort.
Compact designErgonomic shape and small footprint, ideal for limited spaces.
VersatilityHandles a wide range of fluids, from low-viscosity liquids to denser ones, across many sectors.
ReliabilityLong service life and continuous operation even in tough conditions, reducing downtime.
Temperature resistanceOperates reliably at extreme temperatures, maintaining efficiency in hot or cold conditions.
Chemical resistanceWithstands the aggressive detergents and chemicals used in sanitisation.
Ease of installationIntuitive setup for fast integration into existing systems.
Reduced operating costsHigh energy efficiency plus low maintenance for economical long-term operation.
Food safetyMaintains product quality and integrity, ensuring compliance with food safety standards.
Ease of disassemblyDisassembled without complex tools for inspection or deep cleaning.
Gallery
Need a washdown-proof IP69-K pump?
Contact us today for more information and a tailored quote.
