Stainless steel · External seal flushing
FZ-CP FLUX

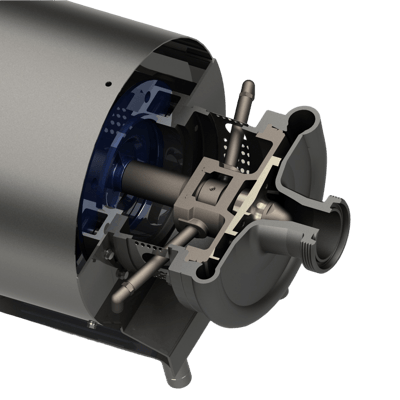

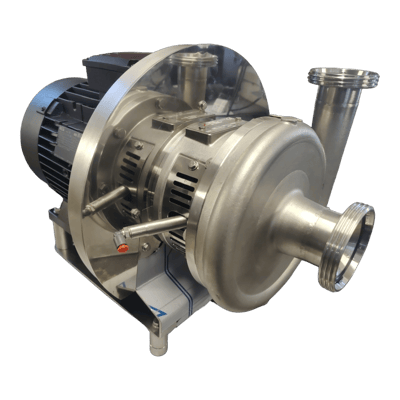

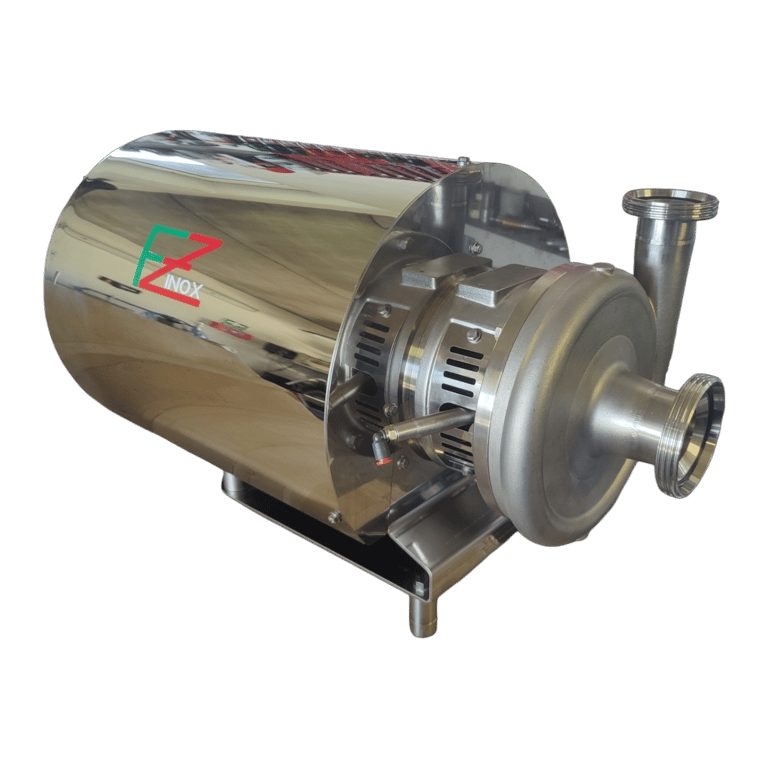

Flushed centrifugal pump
Maximum hygiene with external seal flushing
The FZ-CP FLUX is a centrifugal pump with external seal flushing, designed to guarantee maximum hygiene. The flushing fluid continuously lubricates and cools the mechanical seal, keeping it clean and significantly extending its service life.
Perfect for the food, pharmaceutical and chemical industries, it is ideal for abrasive, viscous or crystallising products that would quickly damage a standard seal. Built entirely in stainless steel — hygienic, robust and reliable.
Made in Italy, it pairs sturdy construction with simple maintenance to keep your processes running safely.
Request a quote WhatsAppDiscover the FZ INOX flushed centrifugal pump

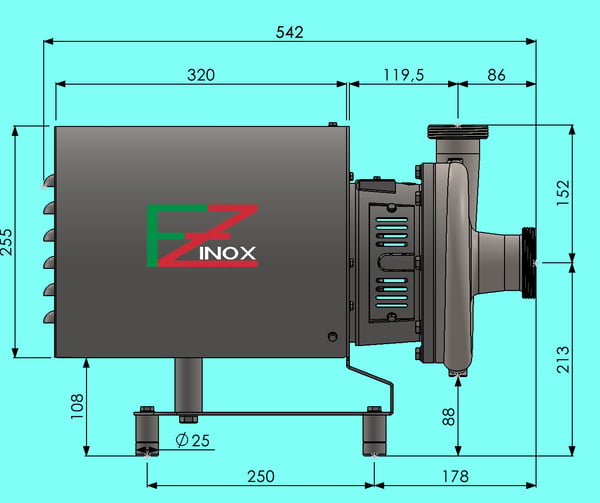

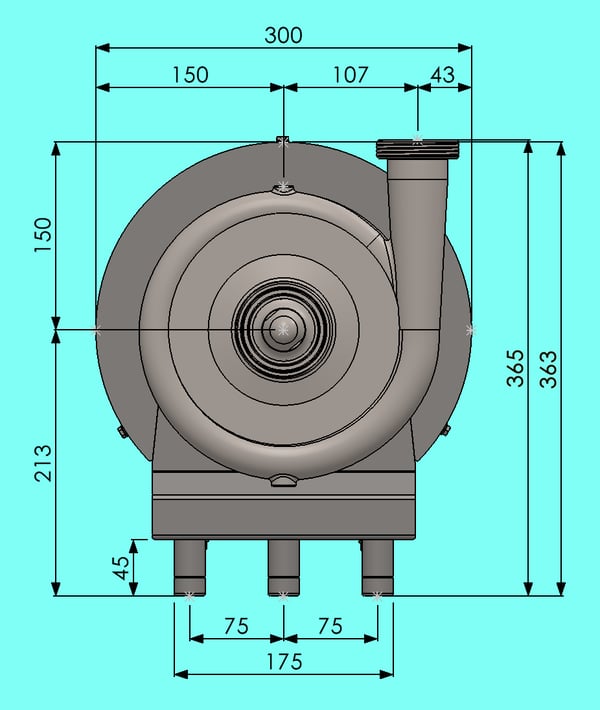

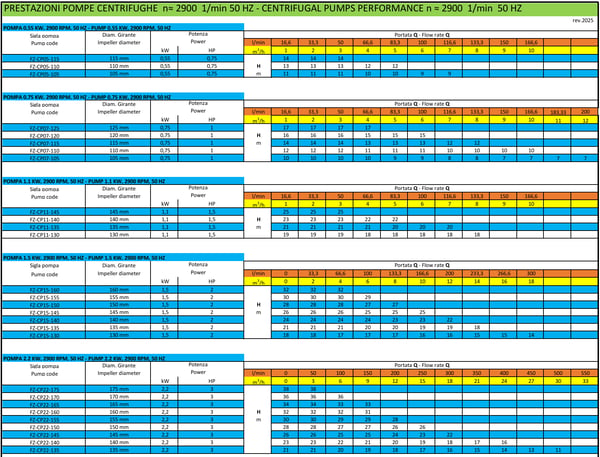

Dimensions of the centrifugal pumps with the following electric motor outputs:
- FZ-CP05 Centrifugal pump with an output of 0.55 kW
- FZ-CP07 Centrifugal pump with an output of 0.75 kW
- FZ-CP11 Centrifugal pump with an output of 1.1 kW
- FZ-CP15 Centrifugal pump with an output of 1.5 kW
- FZ-CP22 Centrifugal pump with an output of 2.2 kW
(Indicative dimensions, not binding)

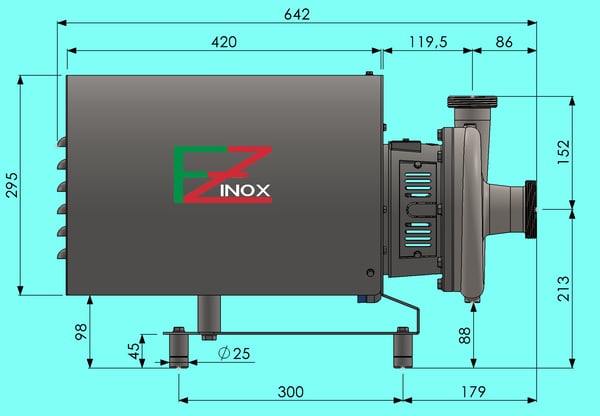

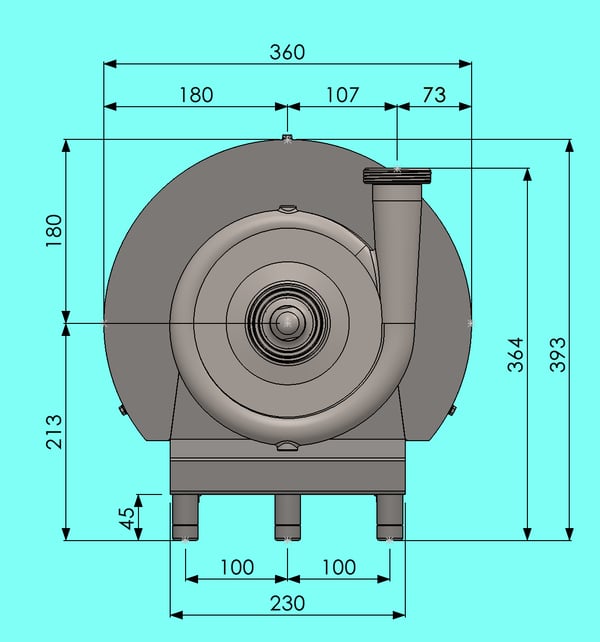

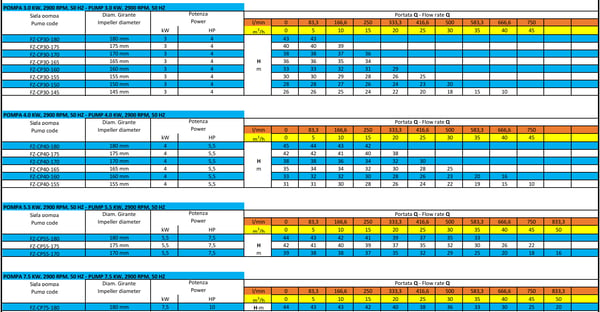

Dimensions of the centrifugal pumps with the following electric motor outputs:
- FZ-CP30 Centrifugal pump with an output of 3.0 kW
- FZ-CP40 Centrifugal pump with an output of 4.0 kW
- FZ-CP55 Centrifugal pump with an output of 5.5 kW
- FZ-CP75 Centrifugal pump with an output of 7.5 kW
(Indicative dimensions, not binding)
Key benefits
Ease of maintenanceThe seal is easily accessible for maintenance.
Reduced contamination riskMinimises the risk of contamination of the pumped fluid.
Longer seal lifeExternally flushed seals tend to have a longer service life.
AdaptabilityAdaptable to a range of process conditions.
Operational safetyGreater operational safety thanks to a reliable seal.
Ease of cleaningFacilitates cleaning and maintenance operations.
VersatilitySuitable for use across a wide range of applications.
Ease of monitoringThe condition of the seal is easier to monitor.
Reduced corrosionA lower risk of internal corrosion.
Less preventive maintenanceFewer preventive maintenance requirements.
Chemical compatibilityGreater compatibility with various types of fluid.
Pressure adaptabilityThe ability to handle different process pressures.
Temperature controlBetter control of the temperature of the rotating shaft.
Reduced downtimeA reduction in pump downtime.
Lower cooling water useMinimises the water used for cooling.
Special materialsSpecial materials can be used for particular process conditions.
Chemical resistanceWithstands a wide range of aggressive chemical agents thanks to special sealing materials.
Handles solidsEasier handling of solids in the pumped fluid without compromising the seal.
High-temperature flowsOperates effectively with high-temperature fluids without compromising seal integrity.
Easy to reconfigureEasier to convert or upgrade for new process needs without major seal changes.
Reduced mechanical wearLess wear on the seal and adjacent components thanks to stable, controlled operation.
Durable sealing materialsMore durable sealing materials that better withstand wear and abrasion over time.

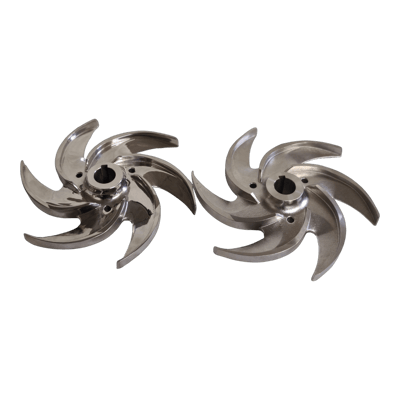

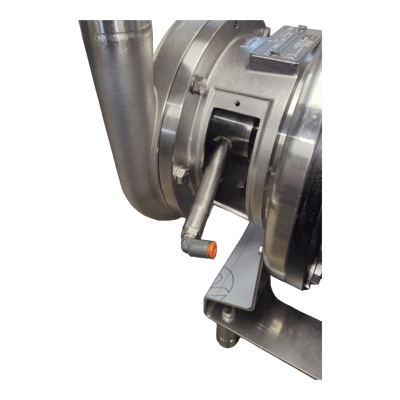

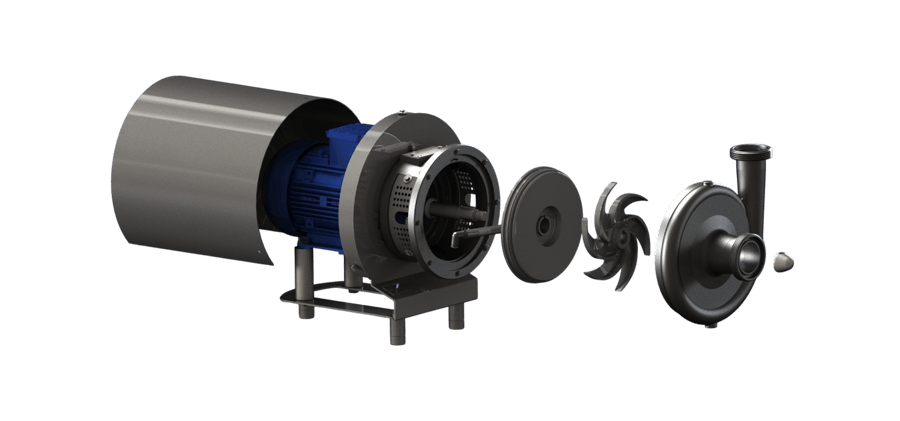

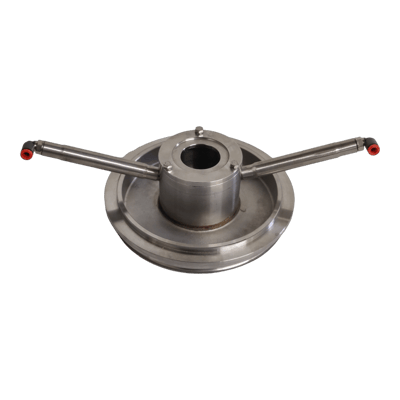

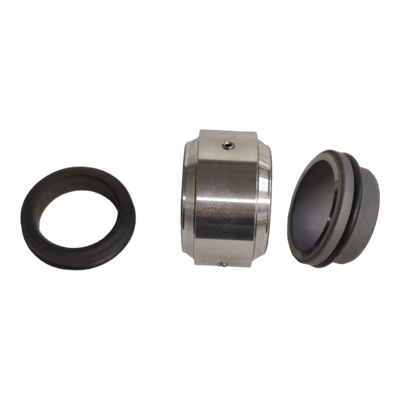

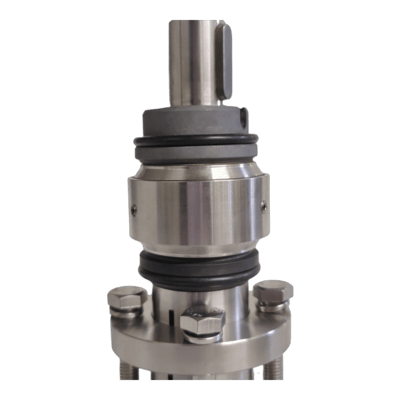

Details and components
Need a flushed-seal pump for demanding products?
Contact us today for more information and a tailored quote.
